Rhino 80″ x 40″ Out-Swing Vault Door

Rhino 80″ x 40″ Out-Swing Vault Door

AVAILABLE IN SOUTH AFRICA – DELIVERY AND INSTALLATION NATIONWIDE AND BEYOND.

Product Details

Out-Swing Vault Door | V8040

Rhino Vault Doors will elevate your home security to a whole new level.

Fire Protection:

• 120 Minute Fire Rating at 1400°F Degrees (fire ratings can vary based on installation & room construction)
• Dual Intumescent Expanding Fire Seals

Security Features:

• UL Listed Lock
• 5.39” Thick Door with Full Coverage ¼” Steel Face
• 12 Gauge Formed Steel Construction
• 1/4″ Thick Steel Outer Door Frame

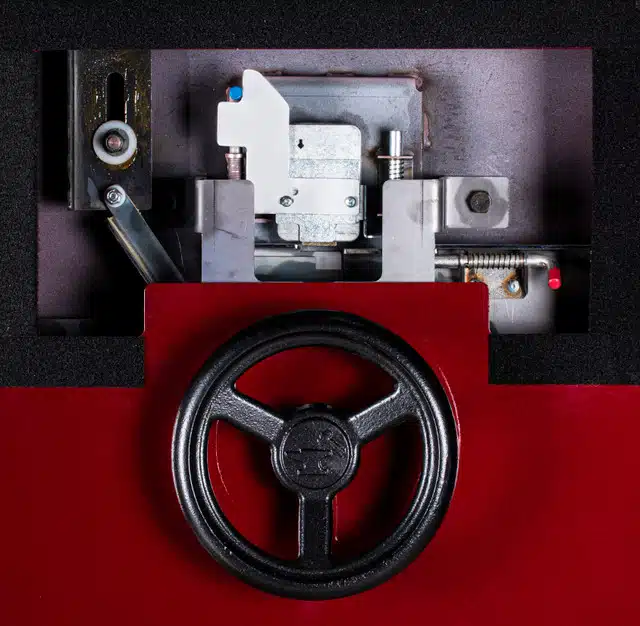

• Ball Bearing Drill Plate and Spring Loaded Relocker Protects the Lock
• Tempered Glass Relocker with Remote Spring Loaded Relocker Deadbolts the System
• Patented Anti-Tamper Clutch Handle
• Large 1.25” Diameter Doorbolts, 3-Sided Protection, 16 Doorbolts Total
• Internal Release and Panic Room Lock-In Mechanism
• Install with Expansion Anchors or Lag Bolts for Additional Security (Not Included)

Style and Function:

• 1100 Lbs. (Approximate Net Weight)
• Clamshell Design Simplifies Installation and Designed to Fit a Variety of Wall Types, 8″ to 12.5” Thick
• 5-Spoke Vault Style Handles
• Decorative Finials Included
• Reverse or Standard Door Opening Available

Walls thicker than 8.5″ will require longer bolts and clamshell may not cover entire interior door frame. Out-swing vault doors may have a concealment panel ordered to cover entire interior door frame on openings thicker than 8.5″ and up to 12.5″.

Door Swing and Hand Options

Minimum Rough Opening

80 3/8″ H x 40 5/8″ W

Maximum Rough Opening for Clamshell Installation

83″ H x 46″ W

Maximum Rough Opening for Concrete Anchor Installation

81″ H x 41 1/4″ W

Minimum Wall Thickness: 8″

Standard Hardware Maximum Wall Thickness: 8.5
